$13.75

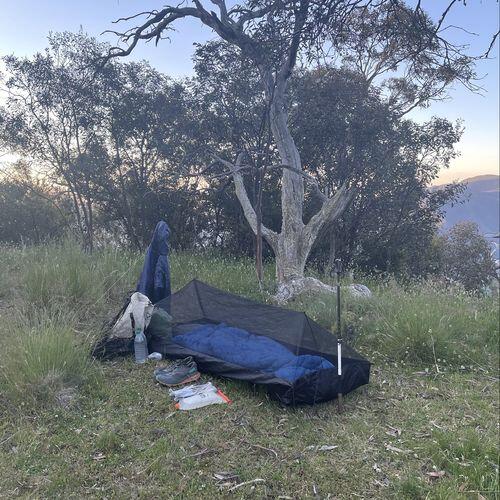

Use this rigging set to simplify your YAMA bivy's stand-alone setup. It works with most adjustable trekking poles or our tent pole sets, and requires only four stakes. The geometry of this setup improves pole stability and ease of pitch compared to using a single line for each pole. Adjustability is provided by a section of shock cord at the center of each line and by multiple stake/clipping loops tied at each end.

Made in the USA from imported materials.

Weight:
  • Front line: 0.28 oz | 8g
  • Rear line: 0.26 oz | 7g
  • TOTAL: 0.54 oz | 15g
Cords:
  • 1.1mm HDPE core w/ polyester sheath
  • 3/32" Shockcord

On each cord you'll find a grommet at the center and multiple loops tied on the ends. For your initial set-up, at each end, clip the shockcord running from the bivy's apex to the loop at the grommet. Then clip the shockcords running from the tub corners to one of the loops near the end of the cord on each side. This should be one loop above the one you intend to stake through. For longer poles, you'll tend to use the loops closer to the ends, while for shorter poles you'll tend to use the ones closer to the center. Stake out the cords so the tub's corners are pulled evenly at all four corners, then insert your poles into the grommets and tension the apexes as necessary. If there's too much slack, move the stakes and clips to loops closer to the middle of the cord. Or, if there's too much tension, move them further out towards the ends.

Subsequent pitches should be much easier and faster since you'll have figured out the appropriate loops to use and roughly where to place your stakes. You may also wish to keep the cords clipped to the bivy when you stow it for faster setup the next time.

After some time, you may wish to trim the cords if you find that you always have excess length.

Product Availability

Unless otherwise stated, if the item is available to add to your cart, then it is in-stock and available to ship. Please see the shipping tab for more info.

If the item is marked as "sold out" or "available to backorder" then please refer to the calendar below to see when it may become available. You may also want to sign up to be notified of availability on the product page. Some accessory items may not show on the calendar as they may simply be squeezed in during pockets of available time rather than scheduled. Please understand that the schedule may change without notice.

If you don't see the item of interest in the calendar, then I don't know when it might be available.



Shipping Information

COVID-19 Update: To reduce contacts, I've reduced the frequency of my post office runs. Expect your order to ship within 1 week*.

Most orders ship out the next business day.*

* If you select seam sealing services with your purchase, please allow up to an additional week for delivery.


Domestic Rates

Order Total Shipping Fee Shipping Method Transit Time**
(business days)
under $50 $2.95 USPS First Class 2 - 5
$50 to $100 $4.95 USPS First Class 2 - 5
$100 to $200 $6.95 USPS First Class / Priority 2 - 3 for Priority
2 - 5 for First Class
Over $200 $9.95 USPS Priority 2 - 3

International

I'm sorry, but for the foreseeable future, I'm not able to offer international shipping.

Description

Use this rigging set to simplify your YAMA bivy's stand-alone setup. It works with most adjustable trekking poles or our tent pole sets, and requires only four stakes. The geometry of this setup improves pole stability and ease of pitch compared to using a single line for each pole. Adjustability is provided by a section of shock cord at the center of each line and by multiple stake/clipping loops tied at each end.

Made in the USA from imported materials.

Specifications

Weight:
  • Front line: 0.28 oz | 8g
  • Rear line: 0.26 oz | 7g
  • TOTAL: 0.54 oz | 15g
Cords:
  • 1.1mm HDPE core w/ polyester sheath
  • 3/32" Shockcord

Instructions

On each cord you'll find a grommet at the center and multiple loops tied on the ends. For your initial set-up, at each end, clip the shockcord running from the bivy's apex to the loop at the grommet. Then clip the shockcords running from the tub corners to one of the loops near the end of the cord on each side. This should be one loop above the one you intend to stake through. For longer poles, you'll tend to use the loops closer to the ends, while for shorter poles you'll tend to use the ones closer to the center. Stake out the cords so the tub's corners are pulled evenly at all four corners, then insert your poles into the grommets and tension the apexes as necessary. If there's too much slack, move the stakes and clips to loops closer to the middle of the cord. Or, if there's too much tension, move them further out towards the ends.

Subsequent pitches should be much easier and faster since you'll have figured out the appropriate loops to use and roughly where to place your stakes. You may also wish to keep the cords clipped to the bivy when you stow it for faster setup the next time.

After some time, you may wish to trim the cords if you find that you always have excess length.
